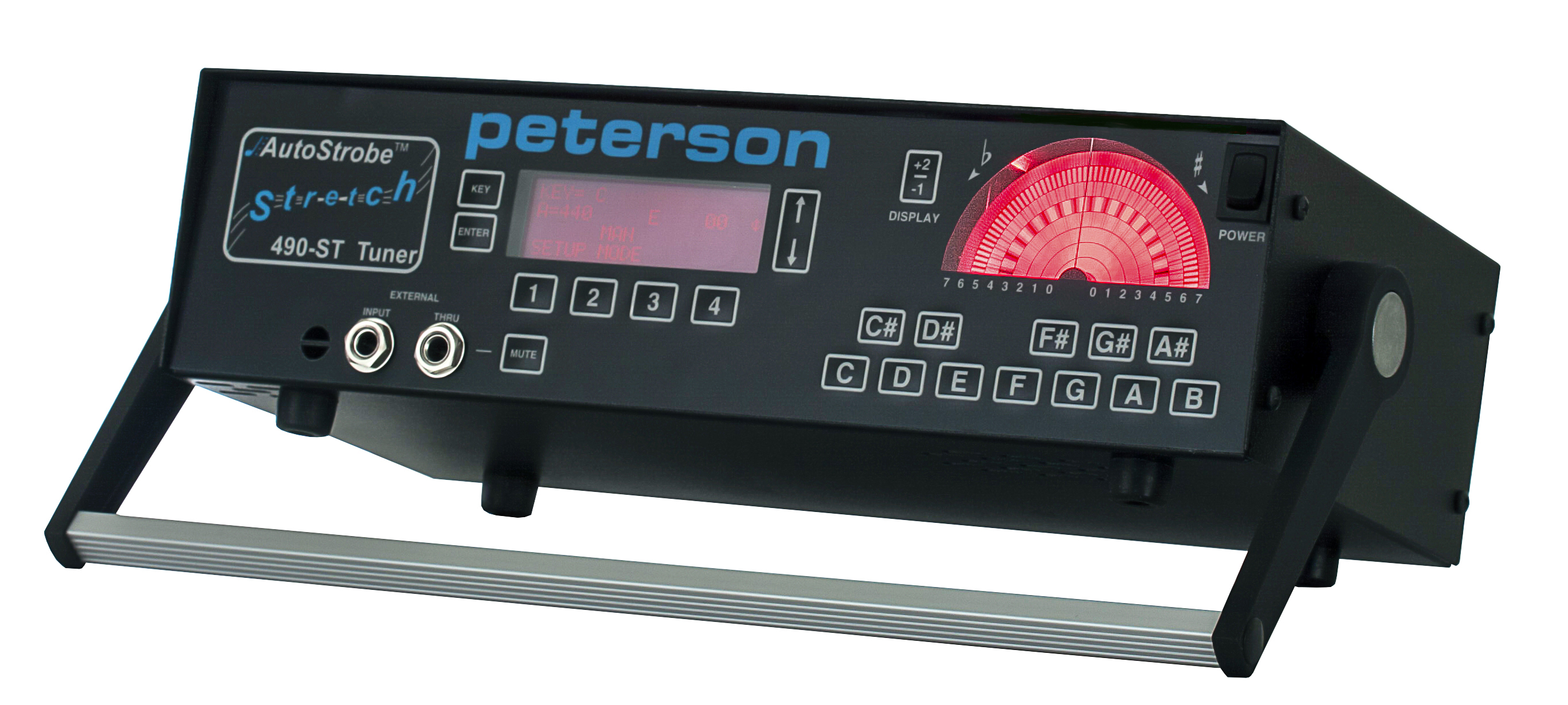

Capable of handling “stretched” interval tuning, this is the instrument technician’s most valuable tool. The Peterson AutoStrobe 490ST offers a vast array of selectable “stretched” tuning options, including pianos of all types. Enjoy the instantaneous response times that only a Peterson can deliver and the relative tuning display of any audio source to 0.1 of a cent (1/1000 of a semitone) accuracy!

With the Model 490-ST, students, technicians, and musicians of all levels can utilize automatic (hands-free) note selection for absolutely the most accurate tuning of any instrument. Key features including real-time display of intonation to improve performance and listening skills while playing as well as mutable throughputs for in-line (yet silent) tuning during performances round out the package!

PRESET STRETCH TABLES

"Stretch" refers to specific adjustments in the frequencies (pitches) of notes to enhance the overall quality of tuning within an instrument.

The AutoStrobe 490-ST comes with 9 factory preset tables that range from concert grand piano to spinet pianos.

Users can program up to 31 stretch tunings of their own.

UNMATCHED ACCURACY

All Peterson products provide guaranteed tuning results to within +/-0.1 cent.

That is 1/1000th of a semitone!

This level of accuracy is the highest in the industry and what has made Peterson the choice of tuning professionals around the globe for over 65 years.

Default

EQU
Standard tuning temperament suitable for regular or alternate tuning, 100 cent intervals - no Sweetening.

Guitar & Bass

P5TH
Tempered for clean 5ths when playing electric guitar with distortion.
G5TH
A unique tuning adjustment for standard-tuned guitars (or, additionally, for “1/2-step down” tuning: E=, A=, D=, G=, B=, E= as well as simple open chord tunings) in which “power-chord” 4ths and 5ths are optimized. This is very useful in situation where distortion is to be used as part of the guitar tone. (This “stretch” avoids a compromise of the P5TH temperament under the Temperament presets through the ability of stretch files to have independent adjustments for each “E” string.)

Historic Temperaments

KRN3
Kirnberger III Temperament
WRK3
Werckmeister III Temperament
YONG
Young Temperament
PYTH
Pythagorean Temperament
JUMA
Just Major Intonation
MEAN
Quarter Comma Meantone Temperament
JUMI
Just Minor Intonation

Stretch Tunings

CNGD
Useful for all concert style grand pianos of approximately 8 feet in length or greater. This minimal stretch profile may also be of use on smaller pianos strung with thin piano wire or in situations where the user wishes a greater coherence of fundamental pitch throughout the instrument.
STGD
Optimal for a 6’ to 7’11 range of grand piano.
AVRG
Taken from optimal settings for vertical and grand pianos of many makes and sizes, this profile will produce a reasonable tuning for non-critical applications. It also provides a good starting point for creating your own stretch profiles.
SMGD
Useful for grand pianos that are 5’10” or smaller in scale.
UPRT
Suitable for vertical pianos equal or exceeding 51 inch.
VERT
Taken from optimal settings for many makes and sizes of vertical pianos, this profile will produce good results for any vertical-style piano in typical playing environments for such pianos.
CNSL
Designed for vertical pianos in 39 inch to 51 inch range.
SPNT
Designed for vertical pianos smaller than 39 inch, this profile is the most extreme (farthest bass and treble note stretching) of these piano preset stretches.

Compare to Sweetened Tunings offered in other products.

FULL RANGE TUNING

Automatic Image Clarity helps identify extremely high or low notes with the push of a button.

The DISPLAY +2 / -1 push button changes the strobe motor speeds to allow the audio input to be displayed on the higher or lower bands on the strobe disc.

Altering the speed of the motor permits viewing the extreme upper and lower registers much more easily.

SIMPLE CONTROL

Designed for “user-friendly” operation with little need for interaction once the initial desired settings have been entered.

Hands-free tuning can be accomplished via the built-in mic or plug in a microphone for additional control of the sound source.

Automatic Note Detection continually adjusts motor speed for viewing of the input sound relative to the nearest standard pitch.

USA MADE

Proudly designed, manufactured, and tested in Alsip, IL U.S.A.

Since 1948, Peterson Strobe Tuners is deeply committed to innovation as well as excellence in design, manufacturing, and customer service.

Power Supply: Built-In (IEC)

Stretch Tuning Tables: 9 Preset Stretches

Note Range: C1 to B8

Note Selection: Automatic Or Manual

Foot Pedal Control: +/- Octave, Note Increment

Peterson Connect Compatible: No

Form Factor: Desktop/Bench

Accuracy: 0.1 Cents

Display Type: Single Analog Strobe Disc

Display Resolution: Infinite (Analog)

Construction: Metal Casing

Product Dimensions LxWxH: 13.4" x 6.375" x 3.5"

Product Weight: 7lbs. (3.18kg)

USB Port: No

Power: AC 100V to 240V

Built-In Microphone: Yes

Built-In Speaker: No

Metronome: No

Inputs: 1/4" Jack

Outputs: 1/4" Thru

Mute-able Output: Footswitch Controlled

Tone Generator: No

Concert A Range: 350Hz to 550Hz

Global Cent Offset Range: +/- 50 Cents

Transposition Range: Keys of C, Bb, F, Eb

Frequency Response Range: 32.70Hz to 7902.13Hz

Warranty: 1 Year

User Presets: 255 User Presets

Historic Temperaments: Yes

Is the accuracy the same for all Peterson tuners?

Yes, the accuracy is within 0.1 cents (1/1000 of one semitone) as with all Peterson Strobe Tuners. An important thing to note is that Peterson Strobe Tuners have ultra high definition displays, so not only are they highly accurate in detecting a note but they have the ability to display that accuracy. Other products claim accuracy but do not have the high definition screen to display the level of accuracy in which they claim. If you cannot see the accuracy, it is of little value. Only Peterson provides High Definition Strobe Tuning.

Share this FAQ Entry

Was this helpful?

Help others find this information sooner.

How do I read a strobe display?

Basically, the strobe image appears to travel to the left if your instrument is flat of the desired pitch and to the right if it is sharp. On earlier models such as the StroboStomp 1, StroboStomp 2, VS-1, VS-II and V-SAM, the strobe image travels upward if your instrument is sharp and downward if your instrument is flat of the desired pitch.

Adjust your instrument until the pattern is as close to still as possible. Strobe displays are 'real-time' and extremely high definition. They require very precise tuning adjustments to stop the display because the frequency/pitch of any instrument is never totally stable.

You'll quickly learn to read the display, make the most precise adjustments and appreciate the high resolution that only a Peterson provides.

Share this FAQ Entry

Was this helpful?

Help others find this information sooner.

What should I do if my new Peterson product doesn't seem to work properly?

If you've first tried all of the solutions offered here, please contact Peterson directly. It is important that you do NOT return the product to the store in which you purchased it without Peterson instructing you to do so. If your unit is problematic, we would like to limit the chances of another customer purchasing the returned unit. Always arrange for product service or replacement directly with Peterson.

Share this FAQ Entry

Was this helpful?

Help others find this information sooner.

Which Peterson products work with Peterson Connect?

Currently, the StroboPLUS HD and the Stomp Classic Pedal Tuner / Active DI are compatible with Peterson Connect.

Share this FAQ Entry

Was this helpful?

Help others find this information sooner.

How do I find out how far out of tune my guitar is in cents?

Pluck a string and adjust the cent value by simply adjusting the cent control until the strobe image is stationary (only fluctuating around a fixed position and not shifting in one direction over time). In this case, you are tuning the tuner to the instrument. When the image comes to rest, the accompanying numeric cent display indicates the distance from 00.0 cents.

Share this FAQ Entry

Was this helpful?

Help others find this information sooner.
